DJI600 - How do you call this part, any idea where can I get it in zero time ?

gurlavie · Nov 3, 2019

Hi Guys,

I guess a strange question.
I have a DJI600, but its missing a part which makes it useless for me.
Its the "square frame" which is mounted beneath it.
In the attached image you can see colored green the missing frame.
And an image of the current situation.

Take it to the extreme....If I can't find the frame, I'll need to rent a drone as early as tomorrow morning, in the San Luis Obispo area.

Thanks

Gur

shooter · Nov 3, 2019

You didn't notice before tonight -- the night before a job -- that it was missing?

SanCap · Nov 3, 2019

I have one sitting in my home which is in SW Florida, I am not there. The best I could do is to have my wife ship it to you tomorrow (Monday). I don't want to sell it but could loan it to you although it may be to late for your deadline.

SanCap · Nov 3, 2019

What sensor are you trying to mount to the M600?

gurlavie · Nov 3, 2019

shooter said:
You didn't notice before tonight -- the night before a job -- that it was missing?

complicated story ...

Indeed I am killing myself

I have a spare day, but I am confused, since I though its a standard component.

gurlavie · Nov 3, 2019

SanCap said:
I have one sitting in my home which is in SW Florida, I am not there. The best I could do is to have my wife ship it to you tomorrow (Monday). I don't want to sell it but could loan it to you although it may be to late for your deadline.

Thanks !
Wouldn't bother you with this.
Is there a name for this part ?
Maybe a place I can get it in LA ? San Jose or SF ?

SanCap · Nov 3, 2019

gurlavie said:
complicated story ... Indeed I am killing myself
I have a spare day, but I am confused, since I though its a standard component.

If you bought it used it was probably removed to mount a different gimbal.

SanCap · Nov 3, 2019

gurlavie said:
Thanks !
Wouldn't bother you with this.
Is there a name for this part ?
Maybe a place I can get it in LA ? San Jose or SF ?

It is called the Vibration Dampning Kit. I do not know anyone there.

Be careful if you do find one, make sure it is the stock kit not the Ronin Mx Kit. It all depends on what camera you are trying to attach.

gurlavie · Nov 3, 2019

SanCap said:
It is called the Vibration Dampning Kit. I do not know anyone there.

Be care if you do find one, make sure it is the stock kit not the Ronin Mx Kit. It all depends on what camera you are trying to attach.

Thanks. It is very confusing. Both the Dampning Kit and Ronin, when I look for them, I cant get a clear specs or even images which are the ones I expect.

SanCap · Nov 3, 2019

gurlavie said:
Thanks. It is very confusing. Both the Dampning Kit and Ronin, when I look for them, I cant get a clear specs or even images which are the ones I expect.

What camera are you trying to mount on the M600???

gurlavie · Nov 3, 2019

SanCap said:
What camera are you trying to mount on the M600???

Its a self built one. So its harnessing was designed expecting these rails.

SanCap · Nov 3, 2019

If you want to mount the Ronin MX, this is the mount that you need. You do not need the original mount that you are missing.

DJI - Ronin MX Mount for Matrice 600 / 600 Pro Hexacopter for use with Ronin MX Gimbal

Ronin MX Mount for Matrice 600 / 600 Pro Hexacopter for use with Ronin-MX gimbal to mount full frame DSLR cameras and more. Also provides a heavy duty mount system for use with the M600pro / M200 series quick release professional payload drop kits designed by Blue Skies Drones...

www.blueskiesdroneshop.com

It attaches to the same mounting pads you showed in your first 2 images.

gurlavie · Nov 3, 2019

SanCap said:
If you want to mount the Ronin MX this is is the mount that you need. You do not need the original mount that you are missing.

DJI - Ronin MX Mount for Matrice 600 / 600 Pro Hexacopter for use with Ronin MX Gimbal

Ronin MX Mount for Matrice 600 / 600 Pro Hexacopter for use with Ronin-MX gimbal to mount full frame DSLR cameras and more. Also provides a heavy duty mount system for use with the M600pro / M200 series quick release professional payload drop kits designed by Blue Skies Drones...

www.blueskiesdroneshop.com

no....not the Ronin......

dougcjohn · Nov 4, 2019

The mount you've pictured is the stock rigid rail mount that came with the M600. The mount @SanCap has indicated is the vibration absorber rail mount that came default with the Ronin MX. They are identical in "bolt pattern" and Rail dimensions. One is rigid and the other vibration absorbing post.

You can generally use the virbration absorber rail mount for the DJI payloads: 1) Ronin MX, 2) X5 Mount to mount X3, Z3, X5, X5R, and XT, and the 3) Z30 mount to mount the Z30 zoom.

If you have a camera or payload that doesn't use Ronin MX or the 2 DJI Camera mounts, then you're fabrication would be basically: 1) if you do NOT require additional shock absorption for vibration then you can use the stock rigid mount. 2) If your custom has NO shock absorption to isolate the camera from M600 oscillations & vibrations then you require the Ronin MX vibration absorbing mount.

As a 3rd option that can mount either the Ronin MX pivot mount or the X5 or Z30 gimbal mounts and additional options for different mount rails. For custom builds on S1000, S900 or M600Pro it provides a more "compact" mount and absorption tension can be finely adjusted for payload weight from light to full cinema camera.
Below is a link to 2 Mounts I had the manufacture combine into a group package to fit all needs:
It includes the 2 separate mounts and the wire-rope required for the square plate mount.

DJI X5 Mount:

DJI Matrice 600 X3/X5 Gimbal Mounting Bracket (Part 1) | eBay

Find many great new & used options and get the best deals for DJI Matrice 600 X3/X5 Gimbal Mounting Bracket (Part 1) at the best online prices at eBay! Free shipping for many products!

www.ebay.com

DJI Z30 Mount:

Original DJI M600/M600 PRO Z30 Gimbal Mounting kit #14 | eBay

1 xDJI M600/M600 PRO Z30 Gimbal Mounting kit #14. DJIM600/M600 PRO Z30. 。3 - 4 weeks to Italy, Brazil.

www.ebay.com

Aftermarket Mounts:
Combo Dual Package and Full Wire-Rope sets:

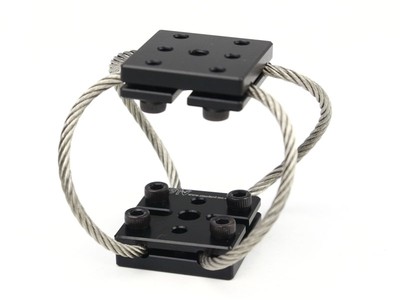

Upgraded wire damper mount for DJI M600+Wire-Rope Isolator Mounting+STO S12+Ship | eBay

Find many great new & used options and get the best deals for Upgraded wire damper mount for DJI M600+Wire-Rope Isolator Mounting+STO S12+Ship at the best online prices at eBay! Free shipping for many products!

www.ebay.com

The separate mounts are:
