What is this device that can power a flat screen in the field?

[GsquaredAerials]

Hi All. I have the M30T and am trying to build out a client monitor pack with the hard case the drone came in. Since I can't figure out how to get my Lenovo M10 Plus tablet to see the Screencast wireless signal from the RC Plus controller, I want to build out a flat panel TV setup like this pilot's and just go HDMI hardwire out. Can anyone tell what that power souce is that the TV is plugged into? I don't see another cable running out of the case that may be going to a portable generator but I'm assuming that is the only way to power the TV. I don't think that's a portable battery bank/converter that is powering the TV.



[Recoveryone]



[Jstat]

Hi All. I have the M30T and am trying to build out a client monitor pack with the hard case the drone came in. Since I can't figure out how to get my Lenovo M10 Plus tablet to see the Screencast wireless signal from the RC Plus controller, I want to build out a flat panel TV setup like this pilot's and just go HDMI hardwire out. Can anyone tell what that power souce is that the TV is plugged into? I don't see another cable running out of the case that may be going to a portable generator but I'm assuming that is the only way to power the TV. I don't think that's a portable battery bank/converter that is powering the TV.

​

Hi All. I have the M30T and am trying to build out a client monitor pack with the hard case the drone came in. Since I can't figure out how to get my Lenovo M10 Plus tablet to see the Screencast wireless signal from the RC Plus controller, I want to build out a flat panel TV setup like this pilot's and just go HDMI hardwire out. Can anyone tell what that power souce is that the TV is plugged into? I don't see another cable running out of the case that may be going to a portable generator but I'm assuming that is the only way to power the TV. I don't think that's a portable battery bank/converter that is powering the TV.

We use a 120volt rechargeable power bank off amazon. usually around 100 to 150 dollars. they are small enough to mount in the box. Tv doesn't draw a lot of power.



[Enorda]

I have the Anker 757. While a lot more expensive, it was used a lot when I was flying the M30. It has enough power to recharge batteries in the case, keep my remote charged, keep my phone charged, and since it can slowly recharge hooked to your car or solar panels, it lasts a long time.

When I was flying 15 sites a day, with 9 sets of batteries, I would top off any batteries that were under 40% and just keep flying. I really didn't like starting a flight that was going to take 30 minutes with less than full batteries.

I will say, it is big, heavy (not quite as heavy as a fully loaded M30 battery case), but could power a lot more than a flat screen. I'd recommend it if you think you would want something that can recharge in the field without dragging a generator with you. I was flying ag fields, so I was often too far out to stop somewhere to charge.



[Raptor]

Jackery portable power station. They make a number of models. I carry a 240 and 300 with me in the field. Very useful!!



[jmichael]

Hi All. I have the M30T and am trying to build out a client monitor pack with the hard case the drone came in. Since I can't figure out how to get my Lenovo M10 Plus tablet to see the Screencast wireless signal from the RC Plus controller, I want to build out a flat panel TV setup like this pilot's and just go HDMI hardwire out. Can anyone tell what that power souce is that the TV is plugged into? I don't see another cable running out of the case that may be going to a portable generator but I'm assuming that is the only way to power the TV. I don't think that's a portable battery bank/converter that is powering the TV.

There are lots of monitor choices. Look for directors monitor for battery powered solutions. Some use V mount and some take a 12vdc barrel connector.



[Raptor]

Check this portable external monitor out. This is what I use in the field. Works very well and the screen is very bright.

FEELWORLD LUT11H 10.1 Inch 2000nit Ultra Bright Camera Field DSLR Monitor with Touchscreen Waveform LUT F970 Install and Power Kit HDMI Input Output​

https://www.amazon.com/dp/B0CMSQZ9HK?psc=1&ref=ppx_yo2ov_dt_b_product_details



[jmichael]

Another search term is "carry-on monitor" which typically have a case. Here is a comparison of a few:

https://www.bhphotovideo.com/c/compare/FeelWorld_21.5+4K+Broadcast+Carry-On+Director+Monitor_vs_Lilliput_BM280-4K+Carry-On+4K+Monitor+V-Mount_vs_FeelWorld_21.5+Full+HD+IPS+Carry-On+Broadcast+Monitor+Silver_vs_Lilliput_BM280-4K+Carry-On+4K+Monitor+Gold%26nbsp%3BMount/BHitems/1762376-REG_1196225-REG_1473468-REG_1415418-REG



[TreeLineView]

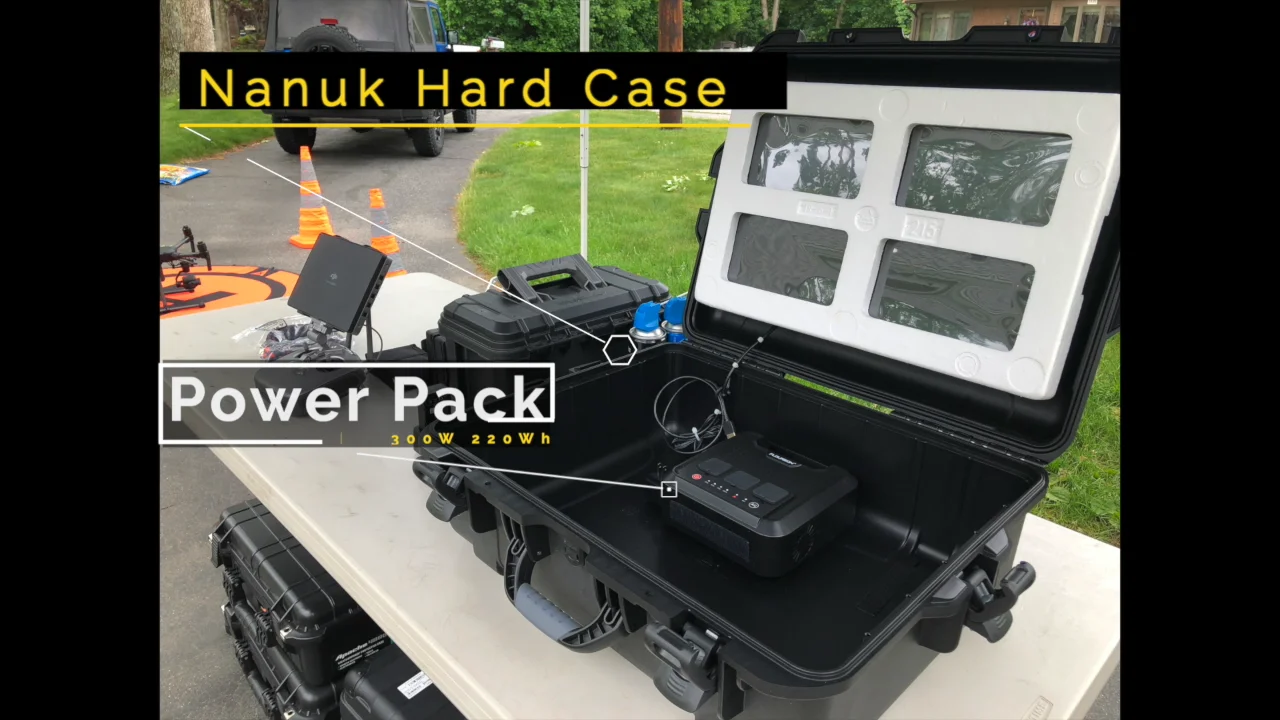

I built this out a few years ago. Have since updated to use bluetooth wifi from my ProController to the station. Works great and range is about 200ft.

IC Screen

This video is about IC Screen

vimeo.com

Adding thread for information about wifi solution and testing:

Wireless Solution to transmit RC Pro screen to Incident Command Screen

Some promising results on our new wireless transmission solution for sending screen signal from the Pro Controller to our Incident command screen. Tested it last night during a 4 hour search and rescue training session. It worked flawlessly. The transmitter and receiver sticks both need...

commercialdronepilots.com
